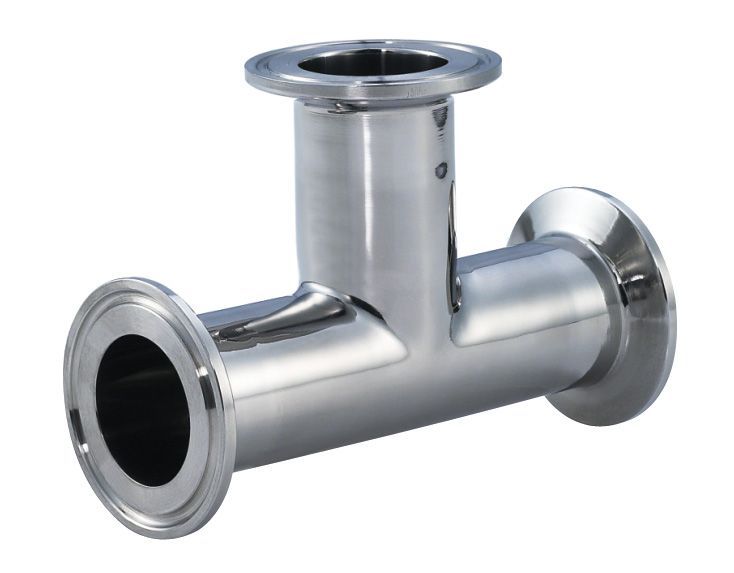

卡箍式三通
|
||||
| Size | L1 | B | ||
| 1″ | 60.3 | 50.5 | ||
| 11/2″ | 69.9 | 50.5 | ||
| 2″ | 88.9 | 64 | ||
| 21/2″ | 88.9 | 77.5 | ||
| 3″ | 95.3 | 91 | ||
| 4″ | 114.3 | 119 | ||
|
|
Size | L1 | B | |
| 1/2″ | 57.2 | 25.4 | ||
| 3/4″ | 60.3 | 25.4 | ||
| 1″ | 66.7 | 50.5 | ||
| 11/2″ | 73 | 50.5 | ||
| 2″ | 88.7 | 64 | ||
| 21/2″ | 92.1 | 77.5 | ||
| 3″ | 98.4 | 91 | ||
| 4″ | 120.7 | 119 | ||
|
|
Size | L1 | L2 | |
| DN16 | 53 | 34 | ||
| DN20 | 58 | 34 | ||
| DN25 | 71.5 | 50.5 | ||
| DN32 | 76.5 | 50.5 | ||
| DN40 | 81.3 | 50.5 | ||
| DN50 | 91.5 | 64 | ||
| DN65 | 108 | 91 | ||
| DN80 | 118 | 106 | ||
| DN100 | 128 | 119 | ||
|
|
Size | L1 | B | |
| 1″ | 55 | 50.5 | ||
| 11/4″ | 59.5 | 50.5 | ||
| 11/2″ | 70 | 50.5 | ||
| 2″ | 82 | 64 | ||
| 21/2″ | 105 | 77.5 | ||
| 3″ | 110 | 91 | ||
| 31/2″ | 125 | 108 | ||
| 4″ | 148.5 | 119 | ||
